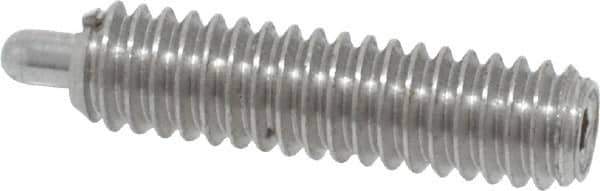

Vlier - 8-32, 5/8" Thread Length, 3/32" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.069 - 0.07" Max Plunger Diam, 5/8" Plunger Length, 2.7 Lb Init End Force, 7.3 Lb Final End Force
Item #: 62117155
Brand: Vlier
Model #: SSS50
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 8-32 |
| Thread Length (Inch) | 5/8 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.0700 |
| Plunger Projection (Inch) | 3/32 |
| Locking Element | No |
| Minimum Plunger Diameter (Decimal Inch) | 0.0690 |
| Body Length (Inch) | 5/8 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 5/8 |
| Final End Force (Lb.) | 7.30 |
| Initial End Force (Lb.) | 2.70 |
