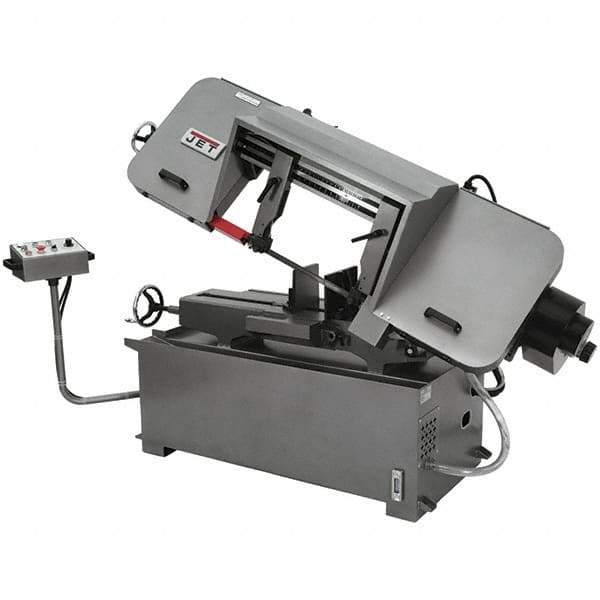

Jet - 12 x 35" Max Capacity, Semi-Automatic Variable Speed Pulley Horizontal Bandsaw - 82 to 262 SFPM Blade Speed, 230 Volts, 45°, 3 hp, 3 Phase
Item #: 62112313
Brand: Jet
Model #: 414476
Exact Tooling IR#: 04
Features and Benefits
Semi-automatic saws are similar to manual saws, but the saw head is programmed to automatically rise to the starting position after the cut is completed. The operator must then reposition the material to make another cut.
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Machine Style | Semi-Automatic |
| Drive Type | Variable Speed Pulley |
| Angle of Rotation | 45 |
| Maximum Capacity (Rectangular) (Inch) | 12 x 35 |
| Maximum Capacity (Rounds) (Inch) | 12 |
| Phase | 3 |
| Voltage | 230 |
| Coolant System | Yes |
| Angular Cuts at 45 Degrees (Inch) | 12 (Round); 12 x 12 (Square) |
| Blade Width (Decimal Inch) | 1.0000 |
| Special Item Information | 460V available. item 70849435 |
| Blade Speeds (SFPM) | 82 to 262 |
| Blade Length (Inch) | 156 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Blade Guide Type | Carbide |
| Horsepower (HP) | 3.00 |
| Base Width (Decimal Inch) | 31.5000 |
| Base Depth (Inch) | 87 |
