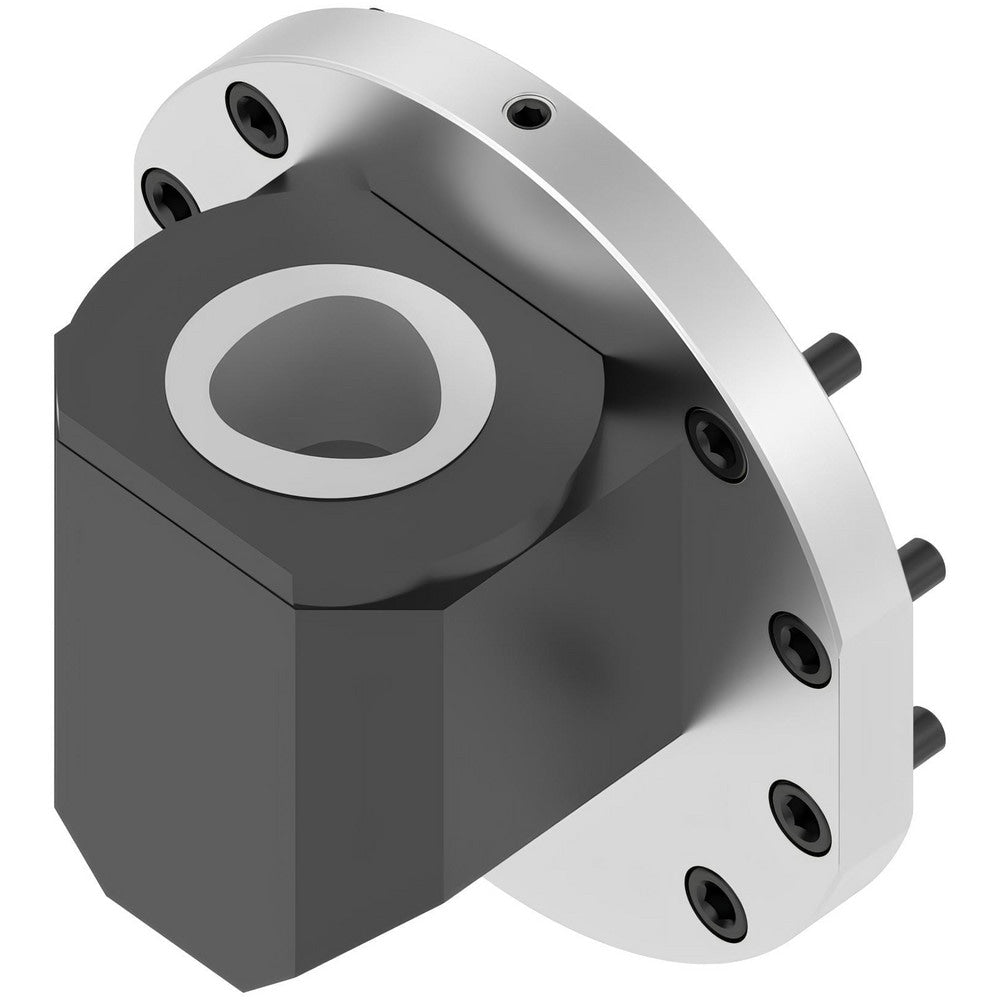

Boring Bar Holders & Adapters; Inside Modular Connection Size: BA200; Bore Diameter (mm): 63.0000; Bore Diameter (Inch): 2-1/2; Bore Diameter (Decimal Inch): 2.4800; Bore Depth (mm): 62.00; Bore Depth (Decimal Inch): 2.4409; Outside Modular Connection Siz
Item #: 82878539
Brand: Seco
Model #: 10144413
Product Specifications
| Inside Modular Connection Size | BA200 |
| Bore Diameter (mm) | 63.0000 |
| Bore Diameter (Inch) | 2-1/2 |
| Bore Diameter (Decimal Inch) | 2.4800 |
| Bore Depth (mm) | 62.00 |
| Bore Depth (Decimal Inch) | 2.4409 |
| Outside Modular Connection Size | C6 |
| Connection Size | 63 mm |
| Body Diameter (mm) | 200.000 |
| Hole Diameter (Mm) ( - 0 Decimals) | 200.0000 |
| Nose Diameter (Mm) ( - 2 Decimals) | 63.00 |
| Shank Diameter (mm) | 200.0000 |
| Through Coolant | Yes |
| Lock Screw Size (mm) | 10.00 |
| Projection (mm) | 84.000 |
| Coolant Type | External |
| Material | Steel |
| Overall Length (mm) | 114 |
| Type | Steadyline |
| Body Length (Decimal Inch) | 0.7874 |
| Coolant Screw Size (mm) | 0.00 |
| Lock Screw Compatibility | Yes |
| Manufacturer's Part Number | 10144413 |
| Additional Information | Steadyline Is A Modular Anti-Vibration Tooling System Consisting Of Dampened Bars, Providing An Easily Exchangeable Head With The Accurate And Reliable GL Interface. To Add Applicability, The Bars Are Highly Capable Both For Problem-Free Long-Overhang Internal Turning As Well As Rotating Boring Applications. |
| Body Length | 20.000 |
| UNSPSC Code | 27112800 |
| Country of Origin | France |
