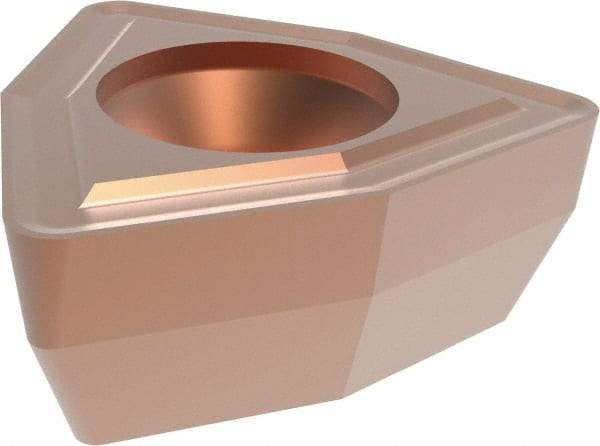

Allied Machine and Engineering - WCMX05T308 Carbide Indexable Drill Insert - AM200 Finish, Trigon, 5/16" Inscribed Circle
Item #: 61503793
Brand: Allied Machine and Engineering
Model #: OP-05T308-2H
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
AM200 coating allows for the best performance in minimum quantity lubricant applications. It offers excellent wear characteristics, a high heat threshold and ideal for most high penetration drilling applications. AM200 is a proprietary coating exclusive to Allied Machine.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 05T308 |
| Material | Carbide |
| Inscribed Circle (mm) | 7.94 |
| Inscribed Circle (Decimal Inch) | 0.3126 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Trigon |
| Relief Angle | 7 |
| Included Angle | 80 |
| Coating | AM200 |
