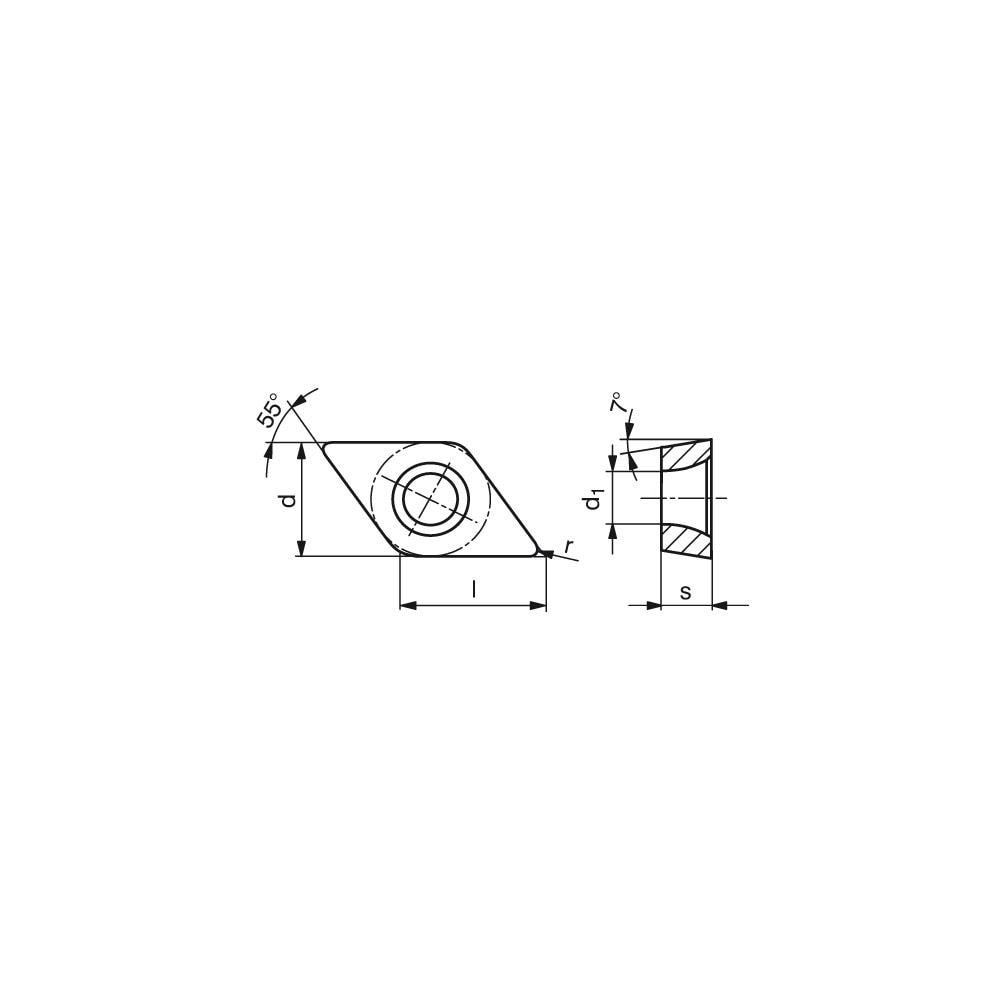

Turning Insert: DCMT21.51EN-SMF TCM10, Cermet
Item #: 26242461
Brand: Ceratizit
Model #: 70265900
Product Specifications
| ANSI Insert Code | DCMT21.51 |
| ISO Insert Code | DCMT070204 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | TCM10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | DCMT |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Cermet |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.3051 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | DCMT 070204EN-SMF TCM10 |
| Chip Breaker | SMF |
| ANSI Size Code | 21.51 |
| ISO Size Code | 070204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.51 |
