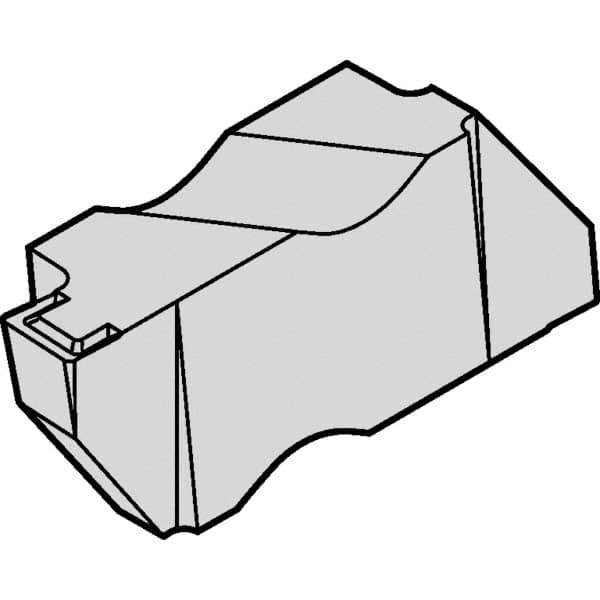

Kennametal - 2NG K Grade KCP25B, 2.75mm Cutting Width Carbide Grooving Insert - 2.79mm Max Depth of Cut, Left Hand, 0.191mm Corner Radius, TiOCN Finish
Item #: 61267647
Brand: Kennametal
Model #: 5968019
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 2 |
| Material | Carbide |
| Cutting Width (mm) | 2.75 |
| Cutting Width (Decimal Inch) | 0.1081 |
| Maximum Depth of Cut (mm) | 2.79 |
| Maximum Depth of Cut (Decimal Inch) | 0.1100 |
| Manufacturer's Grade | KCP25B |
| Coating | TiOCN |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 5.56 |
| Cutting Height (Decimal Inch) | 0.2190 |
| Lead Angle | 1 |
| Relief Angle | 3 |
| Insert Seat Size | 2 |
| Chipbreaker | K |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Maximum Corner Radius (Decimal Inch) | 0.1081 |
| Corner Radius (mm) | 0.191 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | CVD |
| Series | Top Notch |
| Rake Angle | 10 |
| Rake | Positive |
| Overall Width (mm) | 3.84 |
| Overall Width (Decimal Inch) | 0.1510 |
| Insert Thickness (Decimal Inch) | 0.2190 |
