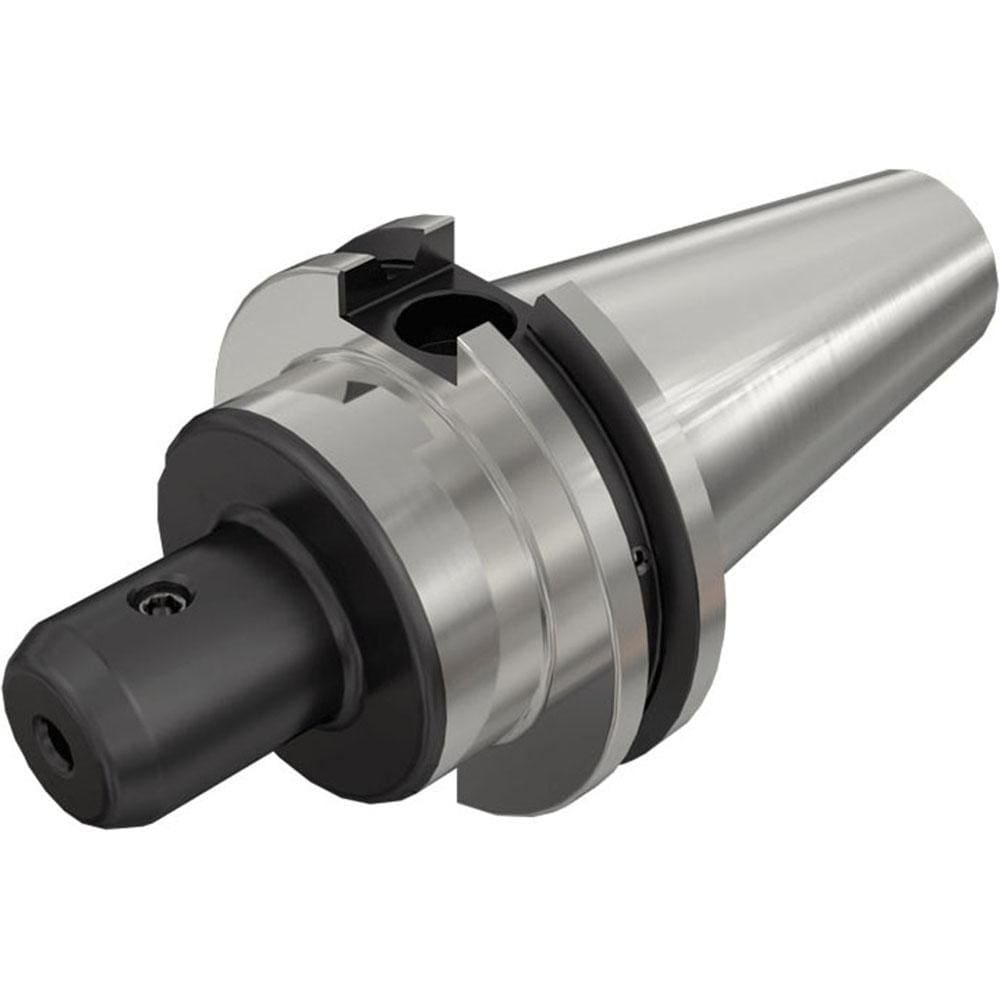

End Mill Holder: CAT40 Taper, Taper Shank, 1/2" Hole Dia
Item #: 58402975
Brand: Tungaloy
Model #: 4501468
Product Specifications
| Shank Type | Taper |
| Overall Length (Inch) | 1-3/4 |
| Overall Length (Decimal Inch) | 1.7500 |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.5000 |
| Nose Diameter (Inch) | 1-1/2 |
| Projection (Inch) | 1-3/4 |
| Projection (Decimal Inch) | 1.7500 |
| Machine Side Connection Type | Taper |
| Machine Side Connection Size | 40 |
| Tooling Side Connection Type | Weldon |
| Tooling Side Connection Size | CAT40 |
| Coolant Type | Through-Spindle & DIN Flange |
| Retention Knob Thread Size | ?5/8-11 |
| UNSPSC Code | 27112800 |
| Shank Type | Taper |
| Overall Length (Inch) | 1-3/4 |
| Overall Length (Decimal Inch) | 1.7500 |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.5000 |
| Nose Diameter (Inch) | 1-1/2 |
| Projection (Inch) | 1-3/4 |
| Projection (Decimal Inch) | 1.7500 |
| Machine Side Connection Type | Taper |
| Machine Side Connection Size | 40 |
| Tooling Side Connection Type | Weldon |
| Tooling Side Connection Size | CAT40 |
| Coolant Type | Through-Spindle & DIN Flange |
| Retention Knob Thread Size | ?5/8-11 |
| UNSPSC Code | 27112800 |
| MSC Part # | 58402975 |
| Mfr Part # | 4501468 |
| Country of Origin Country of Origin is subject to change | Turkey |
