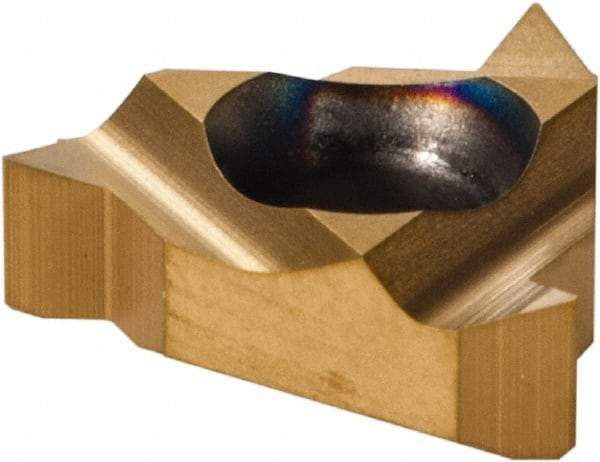

Iscar - 08IR Internal Right Hand 48-16 TPI Partial Profile 60° Laydown Threading Insert - Grade IC228, TiN Coated Carbide, 3/16" Inscribed Circle
Item #: 60850740
Brand: Iscar
Model #: 5901350
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 08IR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | Partial Profile 60 |
| Material Grade | C1/C2/C5/C6 |
| Manufacturer's Grade | IC228 |
| Threads Per Inch | 48-16 |
| Pitch (mm) | 0.50-1.50 |
| Inscribed Circle (mm) | 4.76 |
| Inscribed Circle (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Thickness (Decimal Inch) | 0.0790 |
| Coating | TiN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.05 |
