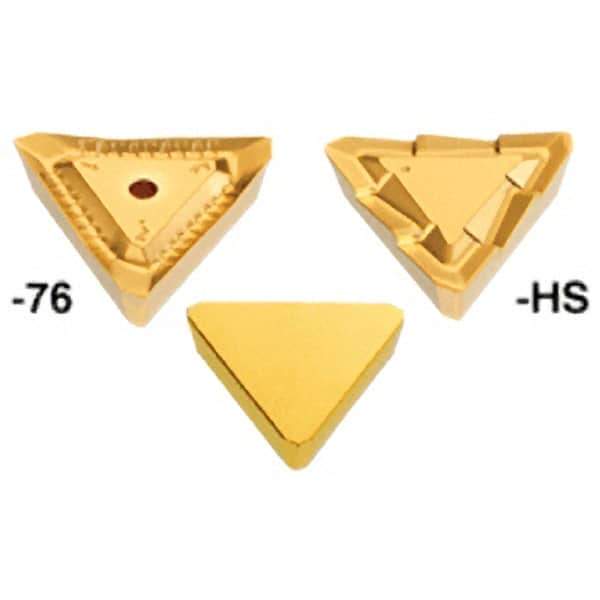

Iscar - TPKR43 HS Grade IC250 Carbide Milling Insert - TiCN/TiN Finish, 3/16" Thick, 1/2" Inscribed Circle
Item #: 60838547
Brand: Iscar
Model #: 5600786
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPKR |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | IC250 |
| Coating | TiCN/TiN |
| Length (Decimal Inch) | 0.8660 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 60 |
| Shape | Triangle |
| Chipbreaker | HS |
| Manufacturers Catalog Number | TPKR 43PDTR-HS |
