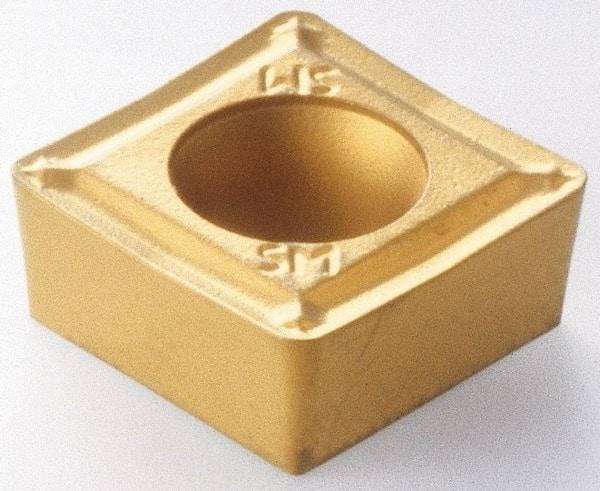

Iscar - SCMT432 19 Grade IC50M Carbide Milling Insert - Uncoated, 0.1874" Thick, 1/2" Inscribed Circle, 0.8mm Corner Radius
Item #: 60830676
Brand: Iscar
Model #: 5600101
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 432 |
| Material | Carbide |
| Material Grade | C6 |
| Manufacturer's Grade | IC50M |
| Coating | Uncoated |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 7.000 |
| Rake | Positive |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | 19 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| ISO Number | SCMT 120408-19 |
