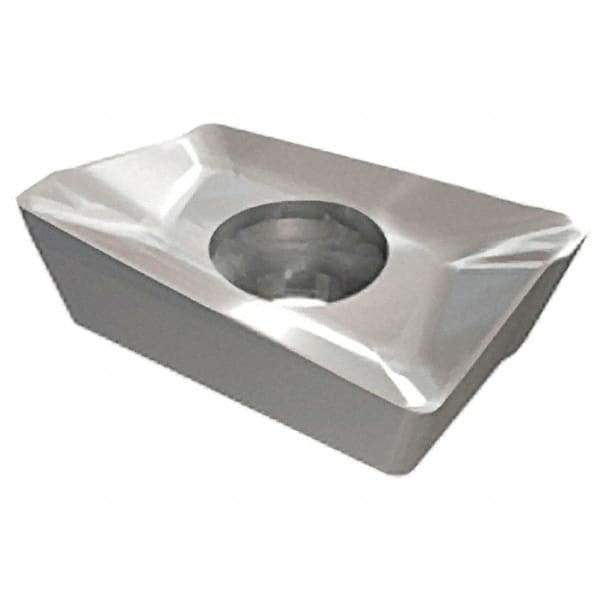

Iscar - APKT1003 8M Grade IC520M Carbide Milling Insert - TiCN Finish, 0.1398" Thick, 0.5mm Corner Radius
Item #: 60829785
Brand: Iscar
Model #: 5600614
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APKT |
| Insert Size | 1003 |
| Material | Carbide |
| Manufacturer's Grade | IC520M |
| Coating | TiCN |
| Width (Decimal Inch) | 0.2638 |
| Length (Decimal Inch) | 0.4311 |
| Thickness (Decimal Inch) | 0.1398 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 11.000 |
| Rake Angle | 18 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | 8M |
| Maximum Depth of Cut (mm) | 10.05 |
| Maximum Depth of Cut (Decimal Inch) | 0.3957 |
| ISO Number | APKT 1003PDTR-8M |
