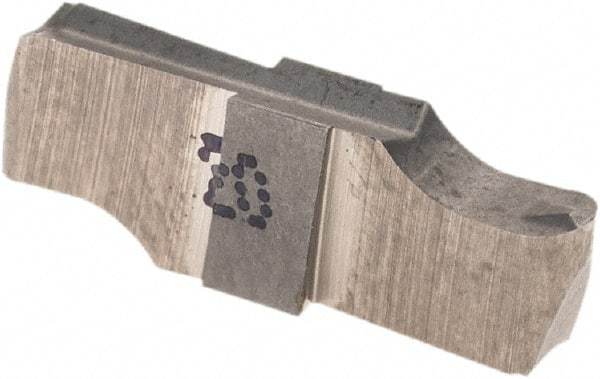

Iscar - GIPI2.39-1.20 Grade IC20, 3/32" Cutting Width, Double End, Carbide Grooving Insert - Uncoated, 1/4" Depth of Cut, Neutral Hand, 1.2mm Corner Radius
Item #: 60776416
Brand: Iscar
Model #: 3355056
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 2.39-1.20 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (mm) | 6.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 8 |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving; Parting; Turning |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Overall Length (Decimal Inch) | 0.6180 |
| Series | Cut Grip |
| ISO Number | GIPI 2.39-1.20 IC20 |
| Manufacturers Catalog Number | 3355056 |
| Overall Width (mm) | 2.40 |
| Overall Width (Decimal Inch) | 0.0940 |
