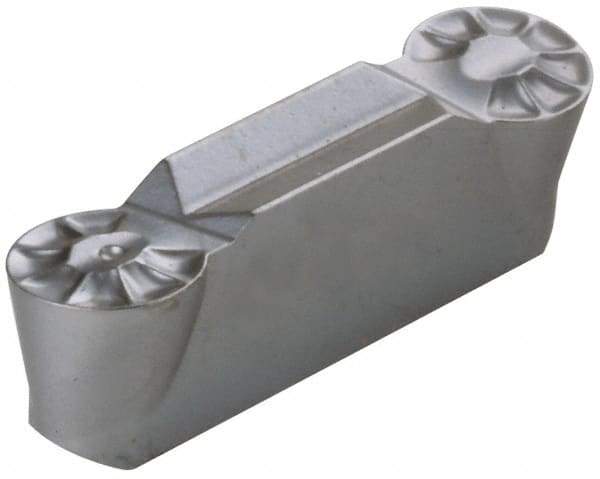

Iscar - 328GIM A Grade IC20, 3.2mm Cutting Width Carbide Grooving Insert - Right Hand, 0.22mm Corner Radius, Uncoated
Item #: 60762911
Brand: Iscar
Model #: 6400388
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIM |
| Insert Size | 328 |
| Material | Carbide |
| Cutting Width (mm) | 3.20 |
| Cutting Width (Decimal Inch) | 0.1260 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Right Hand |
| Lead Angle | 8 |
| Relief Angle | 7 |
| Chipbreaker | A |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.22 |
| Corner Radius (Decimal Inch) | 0.0087 |
| Overall Length (Decimal Inch) | 0.6024 |
