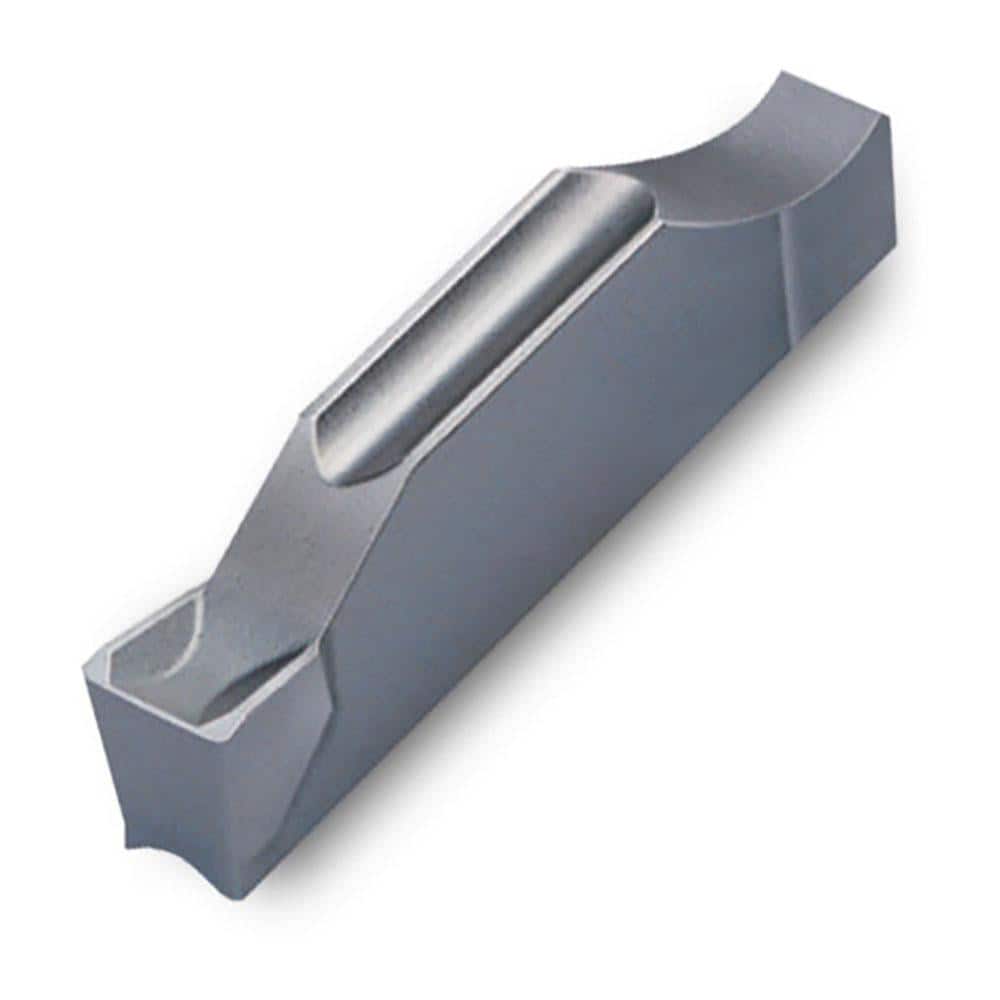

TSC3 TT8020 Carbide Cutoff Insert Uncoated, 0° Neutral Lead Angle, 3mm Cutting Width, 0.2mm Corner Radius
Item #: 60344389
Brand: Ingersoll Cutting Tools
Model #: 6172047
Product Specifications
| Insert Style | TSC |
| Insert Size Code | 3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT8020 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | C |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | TSC |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Cutting Height (mm) | 4.70 |
| Cutting Height (Decimal Inch) | 0.1850 |
| Material Grade | C3; C4; C5; C6; C1; C2 |
| Insert Seat Size | 3 |
| Coating/Finish | Coated |
| Single Or Double End | Single |
