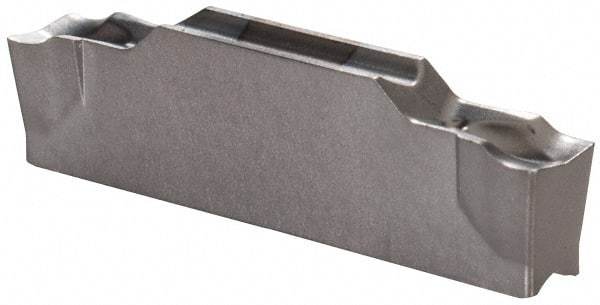

Ingersoll Cutting Tools - TDJ J TT8020 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0079" Cnr Rad, Double End
Item #: 60343720
Brand: Ingersoll Cutting Tools
Model #: 6000174
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TDJ |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Material Grade | C1/C2/C3/C4/C5/C6 |
| Manufacturer's Grade | TT8020 |
| Coating | Uncoated |
| Chipbreaker | J |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Multi-Use Application | Cut-Off; Grooving |
| Coating Process | PVD |
| Cutting Height (mm) | 4.70 |
| Cutting Height (Decimal Inch) | 0.1850 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 3 |
