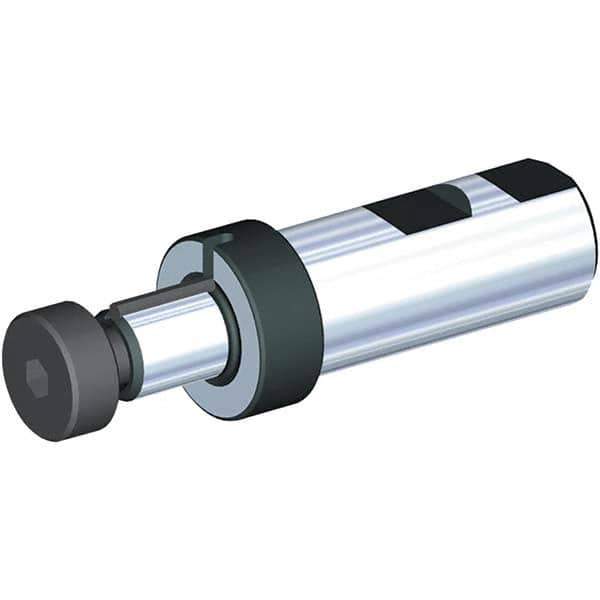

Kennametal - Slotting Cutter Adapter - Taper Shank, 8.78" OAL, CAT50 Taper, For 5/8" Cutter Hole Diam
Item #: 60279866
Brand: Kennametal
Model #: 1261878
Exact Tooling IR#: 04
Features and Benefits
Slotting cutter adapters are straight shank adapters designed with a nut and keyway, They hold saws and milling cutters in conventional end mill adapters with a 1" bore.
| Product Specifications | |
|---|---|
| Type | Slotting Cutter Adapter |
| Milling Arbor Style | Slotting Cutter Adapter |
| Shank Type | Taper Shank |
| Arbor Diameter (mm) | 15.88 |
| Arbor Diameter (Inch) | 5 |
| Arbor Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (mm) | 69.85 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.7500 |
| Taper Size | CAT50 |
| For Cutter Hole Diameter (mm) | 15.88 |
| For Cutter Hole Diameter (Inch) | 5/8 |
| For Cutter Hole Diameter (Decimal Inch) | 0.6250 |
| Overall Length (mm) | 223.01 |
| Overall Length (Decimal Inch) | 8.7800 |
| Projection (mm) | 101.60 |
| Projection (Decimal Inch) | 4 |
| Drawbar Thread Size | 1-8 |
| Includes | Drive Key; Lock Screw |
