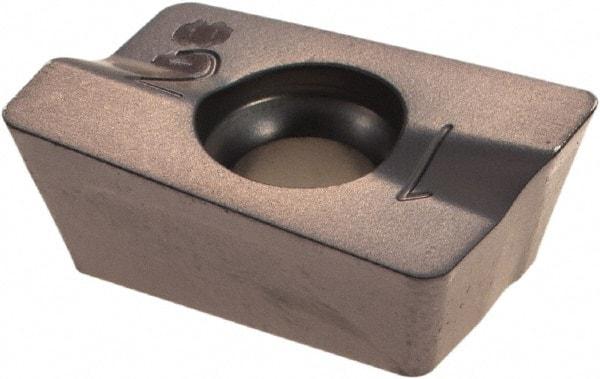

Iscar - HM90 ADKW1505 Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.2295" Thick, 0.8mm Corner Radius
Item #: 60277654
Brand: Iscar
Model #: 5604653
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 ADKW |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3776 |
| Length (Decimal Inch) | 0.6360 |
| Thickness (Decimal Inch) | 0.2295 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 14.15 |
| Maximum Depth of Cut (Decimal Inch) | 0.5570 |
| ISO Number | HM90 ADKW 1505PDR |
