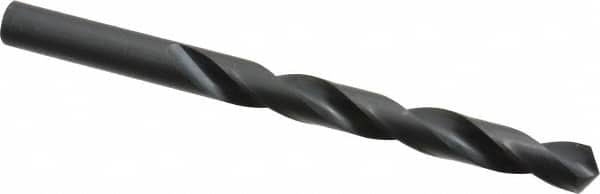

Mechanics Drill Bit: 27/64″ Dia, 118 ™, High Speed Steel, Straight-Cylindrical Shank, Standard Point Oxide Finish, 5-3/8″ OAL, RH Cut, Series T1B
Item #: 60221603
Brand: Triumph Twist Drill
Model #: 011227
Product Specifications
| Drill Bit Size (Inch) | 27/64 |
| Drill Bit Size (Decimal Inch) | 0.4219 |
| Drill Point Angle | 118 |
| Tool Material | High Speed Steel |
| Shank Type | Straight-Cylindrical |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Series | T1B |
| Drill Length Type | Jobber |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Number Of Pieces | 6 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Shank Diameter (Decimal Inch) | 27/64 |
| Overall Length (Inch) | 5-3/8 |
| Flute Length (Inch) | 3-15/16 |
| Coolant Through | No |
| Coating/Finish | Oxide |
