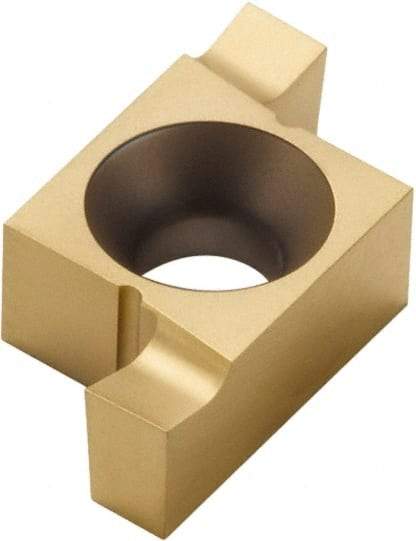

Seco - 1016510ER FG Grade CP30, 1.65mm Cutting Width Carbide Grooving Insert - 1.65mm Max Depth of Cut, Right Hand
Item #: 60175692
Brand: Seco
Model #: 25715
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 10ER |
| Insert Size | 10165 |
| Material | Carbide |
| Cutting Width (mm) | 1.65 |
| Cutting Width (Decimal Inch) | 0.0650 |
| Maximum Depth of Cut (mm) | 1.65 |
| Maximum Depth of Cut (Decimal Inch) | 0.0650 |
| Manufacturer's Grade | CP30 |
| Insert Hand | Right Hand |
| Insert Seat Size | 10 |
| Chipbreaker | FG |
| Multi-Use Tool | No |
| Overall Length (mm) | 9.00 |
| Overall Length (Decimal Inch) | 0.3543 |
| Series | Snap Tap |
| Overall Width (mm) | 6.35 |
| Overall Width (Decimal Inch) | 0.2500 |
