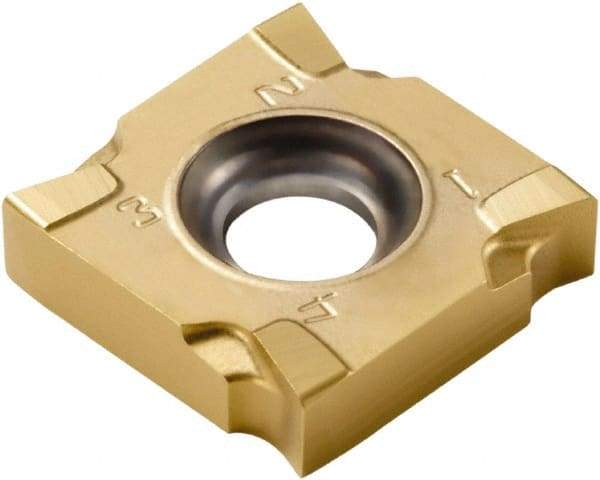

Seco - SNHQ110220 M07 Grade F30M Carbide Milling Insert - TiAlN/TiN Finish, 0.0913" Thick, 0.4331" Inscribed Circle, 2mm Corner Radius
Item #: 60175510
Brand: Seco
Model #: 55250
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNHQ |
| Insert Size | 110220 |
| Material | Carbide |
| Manufacturer's Grade | F30M |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Thickness (Decimal Inch) | 0.0913 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 0.000 |
| Rake Angle | 20 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | M07 |
| ISO Number | SNHQ110220TL4-M07 |
