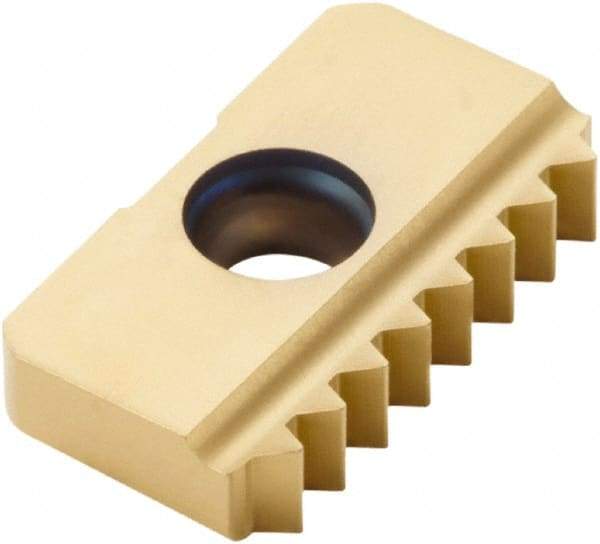

Seco - 2.5mm Pitch, Internal Thread, ISO Standard, 17NMS CP500 Grade Thread Mill Insert - Carbide, TiAlN/TiN Coating
Item #: 60163730
Brand: Seco
Model #: 17514
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | 17NMS |
| Thread Type | Internal |
| Thread Standard | ISO |
| Pitch (mm) | 2.50 |
| Length (mm) | 17.00 |
| Length (Decimal Inch) | 0.6693 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Material | Carbide |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1181 |
| Width (Decimal Inch) | 0.3937 |
| Width (mm) | 10.00 |
| Conical | No |
