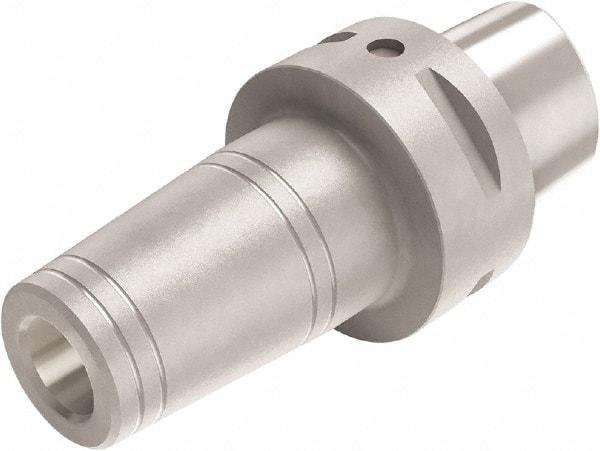

Seco - 18mm Hole Diam, C8 Modular Connection Shrink Fit Tool Holder & Adapter - 90mm Projection, 33mm Nose Diam, 38mm Clamping Depth, 35,000 RPM, Through Coolant
Item #: 60144482
Brand: Seco
Model #: 66504
Exact Tooling IR#: 04
Features and Benefits
Modular connections are used in compatible modular tool holder systems and allow for tool changes without removing the tool shank from the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C8 |
| Hole Diameter (Decimal Inch) | 0.7087 |
| Hole Diameter (mm) | 18.00 |
| Projection (mm) | 90.00 |
| Projection (Decimal Inch) | 3.5433 |
| Nose Diameter (mm) | 33.00 |
| Nose Diameter (Decimal Inch) | 1.2992 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 38.00 |
| Clamping Depth (Decimal Inch) | 1.4961 |
| Balanced to (RPM) | 35000 |
