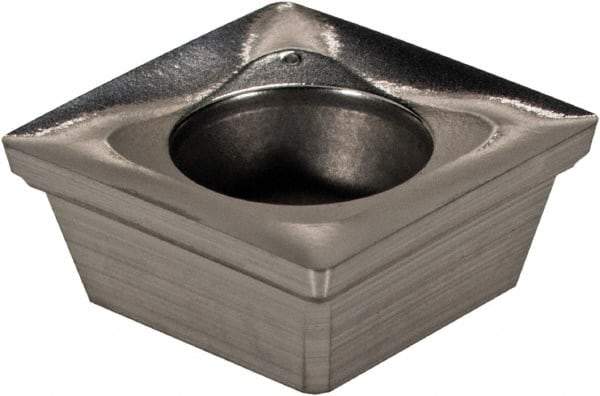

Ingersoll Cutting Tools - SHET110505 P Grade IN15K Carbide Milling Insert - Uncoated, 0.1969" Thick, 0.433" Inscribed Circle, 0.02" Corner Radius
Item #: 59620401
Brand: Ingersoll Cutting Tools
Model #: 5820306
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SHET |
| Insert Size | 110505 |
| Material | Carbide |
| Material Grade | C1/C2 |
| Manufacturer's Grade | IN15K |
| Coating | Uncoated |
| Inscribed Circle (Decimal Inch) | 0.4330 |
| Thickness (Decimal Inch) | 0.1969 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| ISO Number | SHET110505R-P 15K |
