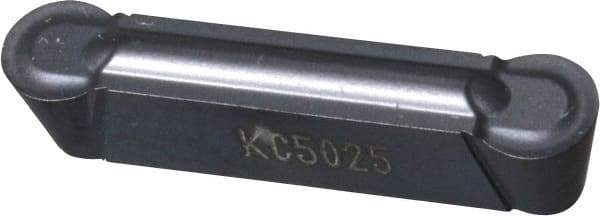

Kennametal - 0400M0R GMP Grade KC5025, 4mm Cutting Width Carbide Grooving Insert - 3.4mm Max Depth of Cut, Neutral, 0.0787" Corner Radius, TiAlN Finish
Item #: 59526228
Brand: Kennametal
Model #: 1952779
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R |
| Insert Size | 0400M0 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 3.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.1339 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KC5025 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Insert Seat Size | 4 |
| Chipbreaker | GMP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | A4 |
| Rake | Positive |
| Manufacturers Catalog Number | A4R0400M04P00GMP |
