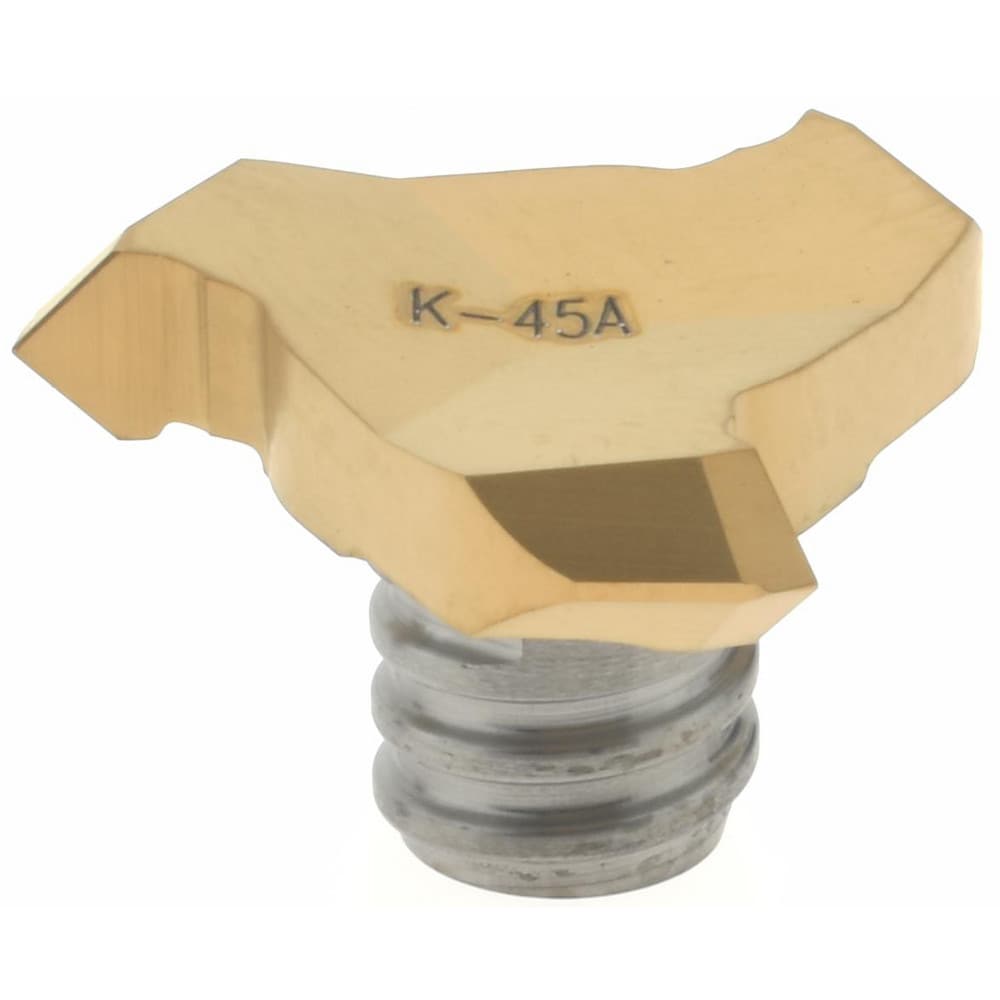

Chamfer Milling Tip Insert: Chamfering IC528, Carbide
Item #: 05962352
Brand: Iscar
Model #: 6403081
Product Specifications
| Milling Tip Type | Chamfer |
| Milling Tip Style | MM GRIT |
| Maximum Depth of Cut (Decimal Inch) | 0.055 |
| Maximum Depth of Cut (mm) | 1.4 |
| Cutting Diameter (Decimal Inch) | 0.6970 |
| Tool Material | Carbide |
| Manufacturer Grade | IC528 |
| Series | Multimaster |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.8000 |
| Cutting Width (Decimal Inch) | 0.1340 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Standards | ISO 13399 |
| Milling Tip Full Description | Chamfering |
| Thread Size | T06 |
| Lead Angle | 45 |
| Manufacturers Catalog Number | MM GRIT 18K-45A |
| Material Grade | C5/C6 |
| Coating/Finish | TiCN; TiN |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 3 |
