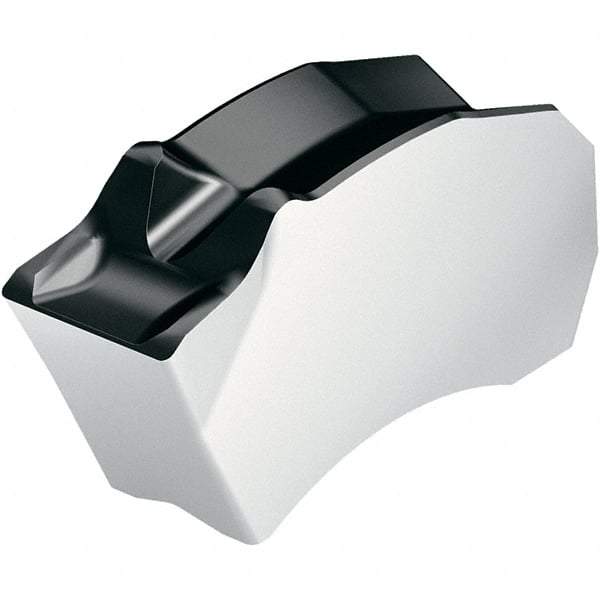

Walter - 10SX CE4 Grade WSM33S, 10mm Cutting Width Carbide Grooving Insert - 45mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, Al2O3/TiN Finish
Item #: 59299586
Brand: Walter
Model #: 6572444
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SX |
| Insert Size | 10 |
| Material | Carbide |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3940 |
| Maximum Depth of Cut (mm) | 45.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.7700 |
| Manufacturer's Grade | WSM33S |
| Coating | Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.41 |
| Cutting Height (Decimal Inch) | 0.3310 |
| Lead Angle | 90 |
| Chipbreaker | CE4 |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | PVD |
| Overall Length (mm) | 17.40 |
| Overall Length (Decimal Inch) | 0.6850 |
| Series | SX |
| Rake | Positive |
| Overall Width (mm) | 10.00 |
| Overall Width (Decimal Inch) | 0.3940 |
