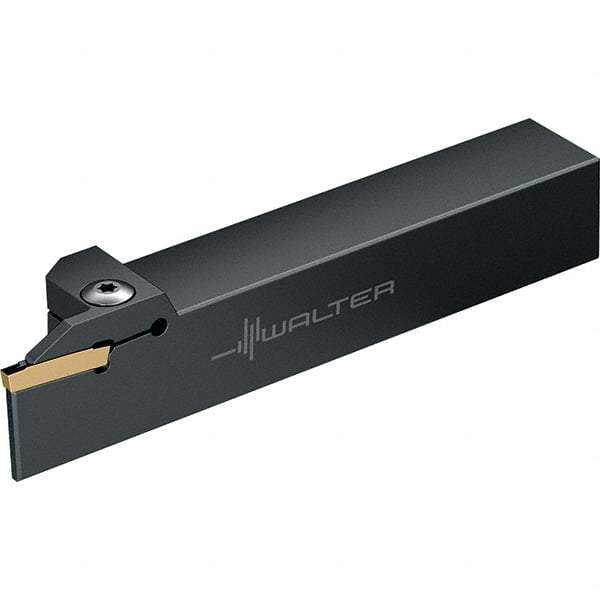

Walter - G1011, External, Right Hand, 32mm Max Depth of Cut, 4mm Min Groove Width, Indexable Grooving Tool Holder - GX24-3E4/F4.. Insert Compatibility, 25mm Shank Height, 0.984" Shank Width, 165mm OAL, Through Coolant
Item #: 59236711
Brand: Walter
Model #: 6530876
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut | 1.2600 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Maximum Depth of Cut (mm) | 32.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Overall Length (mm) | 165.00 |
| Overall Length (Decimal Inch) | 6.4960 |
| Toolholder Style | G1011 |
| Insert Compatibility | GX24-3E4/F4.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9840 |
| Shank Width/Diameter (Inch) | 0.9840 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9840 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Insert Holding Method | Self Grip |
| Number of Inserts Used on Toolholder | 1 |
| Head Length (mm) | 55.00 |
| Head Length (Decimal Inch) | 2.1650 |
| Shank Length (mm) | 110.00 |
| Shank Length (Inch) | 4.3310 |
| Shank Length (Decimal Inch) | 4.3310 |
| Toolholder Material | Steel |
