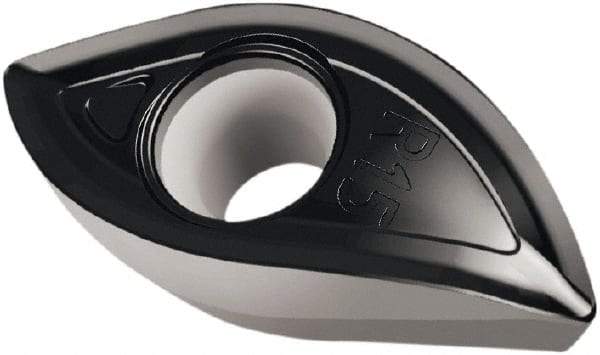

Walter - XDMT16T3095 F55 Grade WSP45S Carbide Milling Insert - TiAlN/Al2O3 Finish, 0.147" Thick, 3/8" Corner Radius
Item #: 59184556
Brand: Walter
Model #: 6412449
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XDMT |
| Insert Size | 16T3095 |
| Material | Carbide |
| Manufacturer's Grade | WSP45S |
| Coating | TiAlN/Al2O3 |
| Width (Decimal Inch) | 0.3543 |
| Length (Decimal Inch) | 0.6272 |
| Thickness (Decimal Inch) | 0.1470 |
| Corner Radius (Decimal Inch) | 0.3750 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Ball Nose |
| Insert Hand | Right Hand |
| Chipbreaker | F55 |
