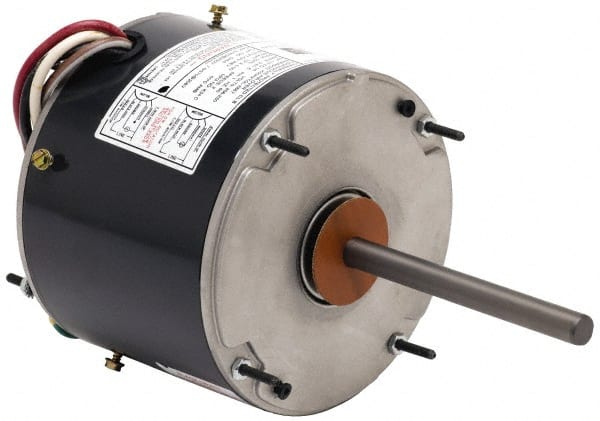

US Motors - 1/3, 1/4, 1/5, 1/6 hp, TEAO Enclosure, Auto Thermal Protection, 1,075 RPM, 208-230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor
Item #: 58757675
Brand: US Motors
Model #: 5462
Product Specifications
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | TEAO |
| Horsepower | 1/3, 1/4, 1/5, 1/6 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1075 |
| Voltage | 208-230 |
| Frequency Hz | 60 |
| Frame Size | 48YZ |
| Mount Type | Stud/Band |
| Number of Speeds | 2 |
| Bearing Type | Ball |
| Applications | HVAC |
| Full Load Amperage | 2.6/1.8 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 9.6000 |
| Shaft Diameter x Length | 1/2 x 5 |
| Full Load Efficiency Rating | 63.30 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
