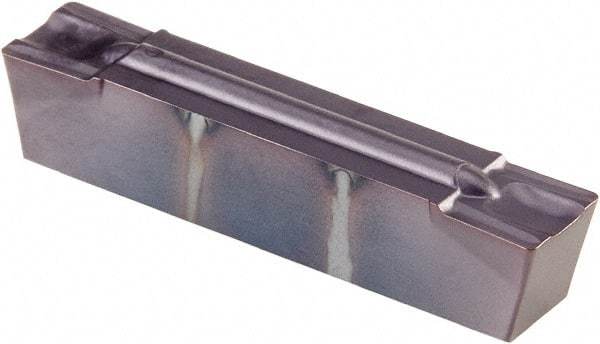

Kennametal - 0505G GMP Grade KCP10, 5.05mm Cutting Width Carbide Grooving Insert - 4.19mm Max Depth of Cut, Neutral, 0.41mm Corner Radius, TiCN/Al2O3 Finish
Item #: 58499484
Brand: Kennametal
Model #: 5069359
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | G |
| Insert Size | 0505 |
| Material | Carbide |
| Cutting Width (mm) | 5.05 |
| Cutting Width (Decimal Inch) | 0.1990 |
| Maximum Depth of Cut (mm) | 4.19 |
| Maximum Depth of Cut (Decimal Inch) | 0.1650 |
| Material Grade | C3/C7 |
| Manufacturer's Grade | KCP10 |
| Coating | TiCN/Al2O3 |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.72 |
| Cutting Height (Decimal Inch) | 0.2250 |
| Insert Seat Size | 5 |
| Chipbreaker | GMP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating Process | CVD |
| Overall Length (mm) | 25.15 |
| Overall Length (Decimal Inch) | 0.9900 |
| Series | A4 |
| Included Angle | 90 |
