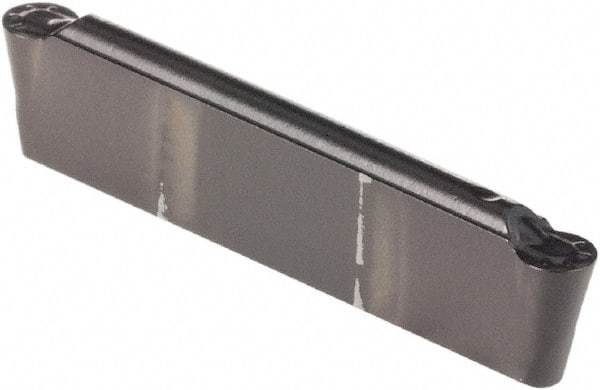

Kennametal - 0205G GMN Grade KCP10, 2.05mm Cutting Width Carbide Grooving Insert - 1.75mm Max Depth of Cut, Neutral, 1.07mm Corner Radius, TiCN/Al2O3 Finish
Item #: 58499385
Brand: Kennametal
Model #: 5069439
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | G |
| Insert Size | 0205 |
| Material | Carbide |
| Cutting Width (mm) | 2.05 |
| Cutting Width (Decimal Inch) | 0.0807 |
| Maximum Depth of Cut (mm) | 1.75 |
| Maximum Depth of Cut (Decimal Inch) | 0.0690 |
| Material Grade | C3/C7 |
| Manufacturer's Grade | KCP10 |
| Coating | TiCN/Al2O3 |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.11 |
| Cutting Height (Decimal Inch) | 0.1620 |
| Insert Seat Size | 2 |
| Chipbreaker | GMN |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 1.07 |
| Corner Radius (Decimal Inch) | 0.0420 |
| Coating Process | CVD |
| Overall Length (mm) | 20.10 |
| Overall Length (Decimal Inch) | 0.7913 |
| Series | A4 |
