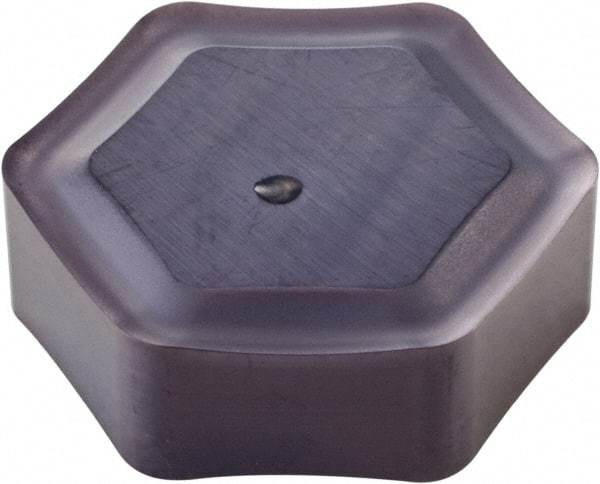

Kennametal - HNGX5355 Grade KC514M Carbide Milling Insert - TiAlN Finish, 7/32" Thick, 0.6378" Inscribed Circle, 2mm Corner Radius
Item #: 58491770
Brand: Kennametal
Model #: 2957707
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNGX |
| Insert Size | 5355 |
| Material | Carbide |
| Manufacturer's Grade | KC514M |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.6378 |
| Thickness (Inch) | 7/32 |
| Thickness (Decimal Inch) | 0.2188 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| ISO Number | HNGX090520ML |
