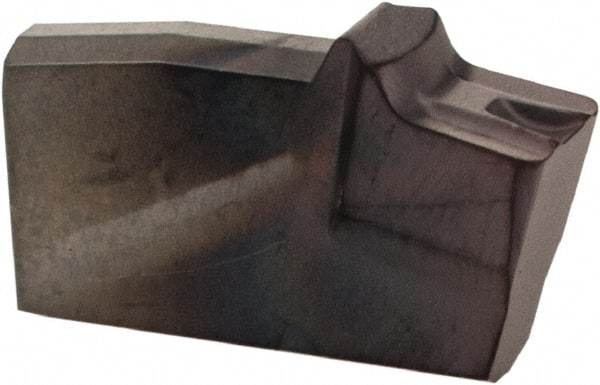

Kennametal - 0300G DF Grade KCU25, 3mm Cutting Width Carbide Grooving Insert - 3.51mm Max Depth of Cut, Neutral, 0.41mm Corner Radius, AlTiN Finish
Item #: 58484940
Brand: Kennametal
Model #: 4114381
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | G |
| Insert Size | 0300 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 3.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.65 |
| Cutting Height (Decimal Inch) | 0.1831 |
| Insert Seat Size | 3 |
| Chipbreaker | DF |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (mm) | 10.55 |
| Overall Length (Decimal Inch) | 0.4154 |
| Series | A3 |
| Included Angle | 90 |
