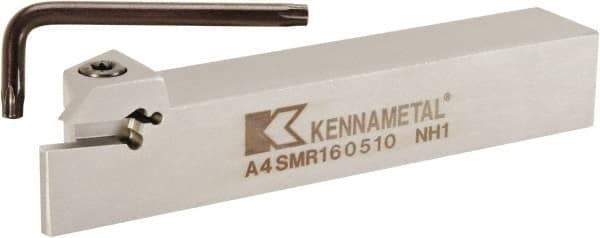

Kennametal - External Thread, 0.315" Max Depth of Cut, 3mm Min Groove Width, 125.3mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 20mm Shank Width, A4G0300M03P02GMP Insert Style, A4SM Toolholder Style, Series A4
Item #: 58467184
Brand: Kennametal
Model #: 3854267
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Overall Length (Decimal Inch) | 4.9331 |
| Overall Length (mm) | 125.30 |
| Series | A4 |
| Toolholder Style | A4SM |
| Insert Compatibility | A4G0300M03P02GMP |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7953 |
| Head Height (mm) | 26.50 |
| Head Height (Decimal Inch) | 1.0433 |
| Head Length (mm) | 28.00 |
| Head Length (Decimal Inch) | 1.1024 |
| Shank Length (Decimal Inch) | 3.8307 |
| Shank Length (mm) | 97.30 |
