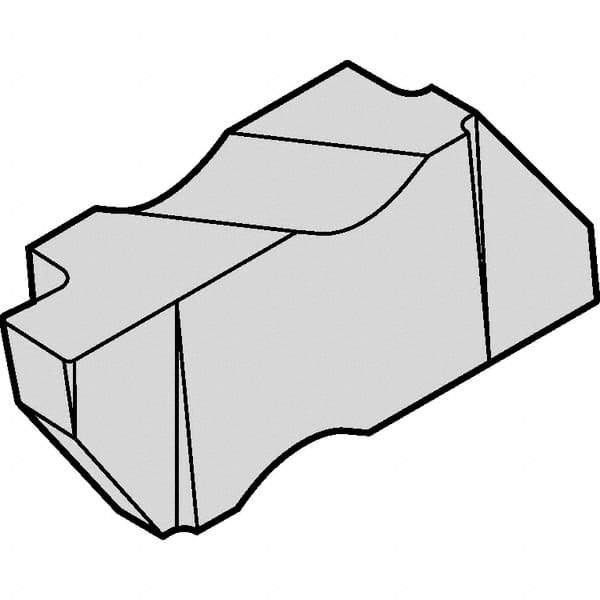

Kennametal - 3094NG EST Grade KD1425, 2.39mm Cutting Width Diamond Tipped Grooving Insert - 3.81mm Max Depth of Cut, Right Hand, 0.19mm Corner Radius, Uncoated
Item #: 58446741
Brand: Kennametal
Model #: 3639215
Exact Tooling IR#: 04
Features and Benefits
Diamond tips are one of the hardest cutting materials. It is brazed onto a carbide insert. Commonly used at high cutting speeds on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 3094 |
| Material | Diamond Tipped |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (mm) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Manufacturer's Grade | KD1425 |
| Coating | Uncoated |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Insert Seat Size | 3 |
| Chipbreaker | EST |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Series | Top Notch |
| Overall Width (mm) | 4.98 |
| Overall Width (Decimal Inch) | 0.1960 |
| Included Angle | 55 |
