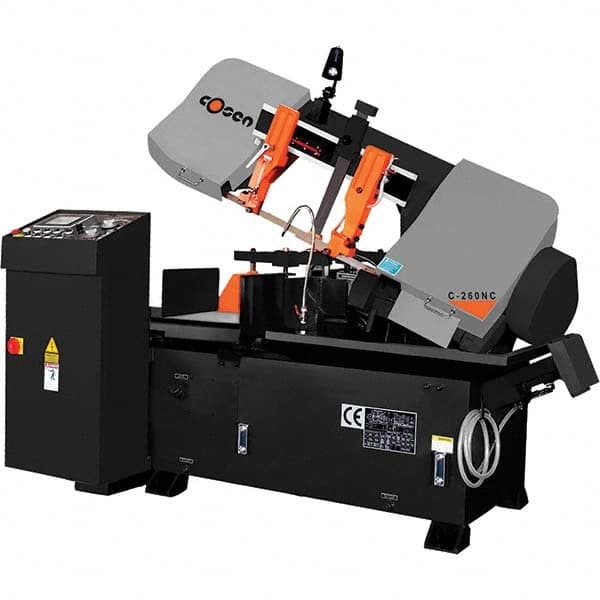

Cosen - Horizontal Bandsaws Machine Style: Automatic Drive Type: Variable Speed Pulley
Item #: 40704645
Brand: Cosen
Model #: C-260NC
Features and Benefits
Automatic saws can be preset, allowing for a continuous feed and cut of the material. The saw head will be automatically lowered and raised up after each cut and can be programmed to perform multiple cuts.
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Horizontal Bandsaws; Machine Style: Automatic ; Drive Type: Variable Speed Pulley ; Angle of Rotation: 90 ; Maximum Capacity (Rectangular) (Inch): 10.2 x 11.8 ; Maximum Capacity (Rounds) (Inch): 10.2 ; Phase: 3
| Machine Style | Automatic |
| Drive Type | Variable Speed Pulley |
| Angle of Rotation | 90 |
| Maximum Capacity (Rectangular) (Inch) | 10.2 x 11.8 |
| Maximum Capacity (Rounds) (Inch) | 10.2 |
| Phase | 3 |
| Voltage | 208/230/460 |
| Coolant System | Yes |
| Blade Width (Decimal Inch) | 1.2500 |
| Blade Speeds (SFPM) | 66 - 328 |
| Blade Length (Feet) | 12.00 |
| Blade Thickness (Decimal Inch) | 0.0420 |
| Blade Guide Type | Carbide |
| Horsepower (HP) | 5 |
