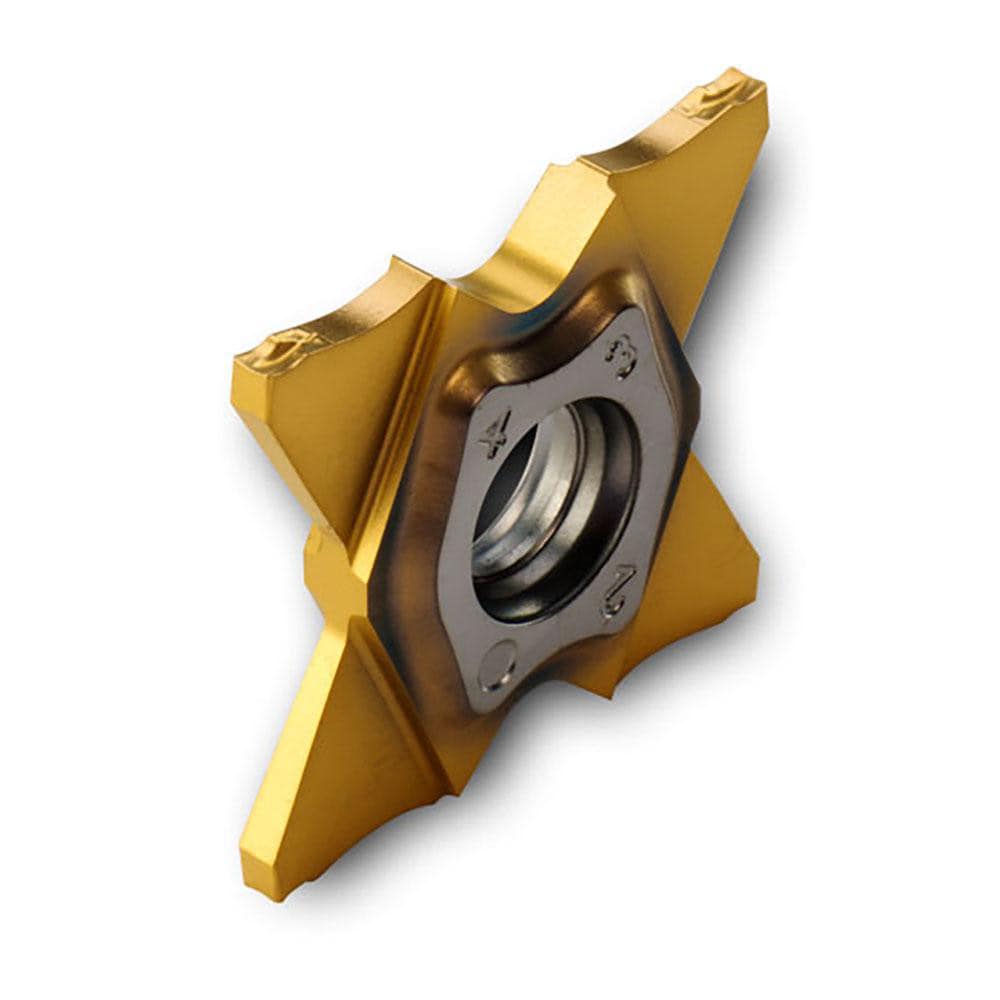

Grooving Insert: TQJJ TT9080, Solid Carbide
Item #: 32766362
Brand: Ingersoll Cutting Tools
Model #: 6402197
Product Specifications
| Insert Style | TQJ |
| Insert Size Code | 27-1.00-0.10 |
| Cutting Width (Decimal Inch) | 0.039 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Insert Material | Carbide |
| Manufacturer Grade | TT9080 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Rake | Positive |
| Insert Holding Method | Screw |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.1380 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 3.50 |
| Lead Angle | 90 |
| Multi-use Tool | Yes |
| Series | TQJ27 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.063 |
| Primary Workpiece Material | Stainless Steel; Steel; Superalloys |
| Primary Workpiece Material Code | S; M |
| Standards | ISO |
| UNSPSC Code | 23242105 |
| Chip Breaker | J |
| Coating/Finish | AlTiN; TiN |
