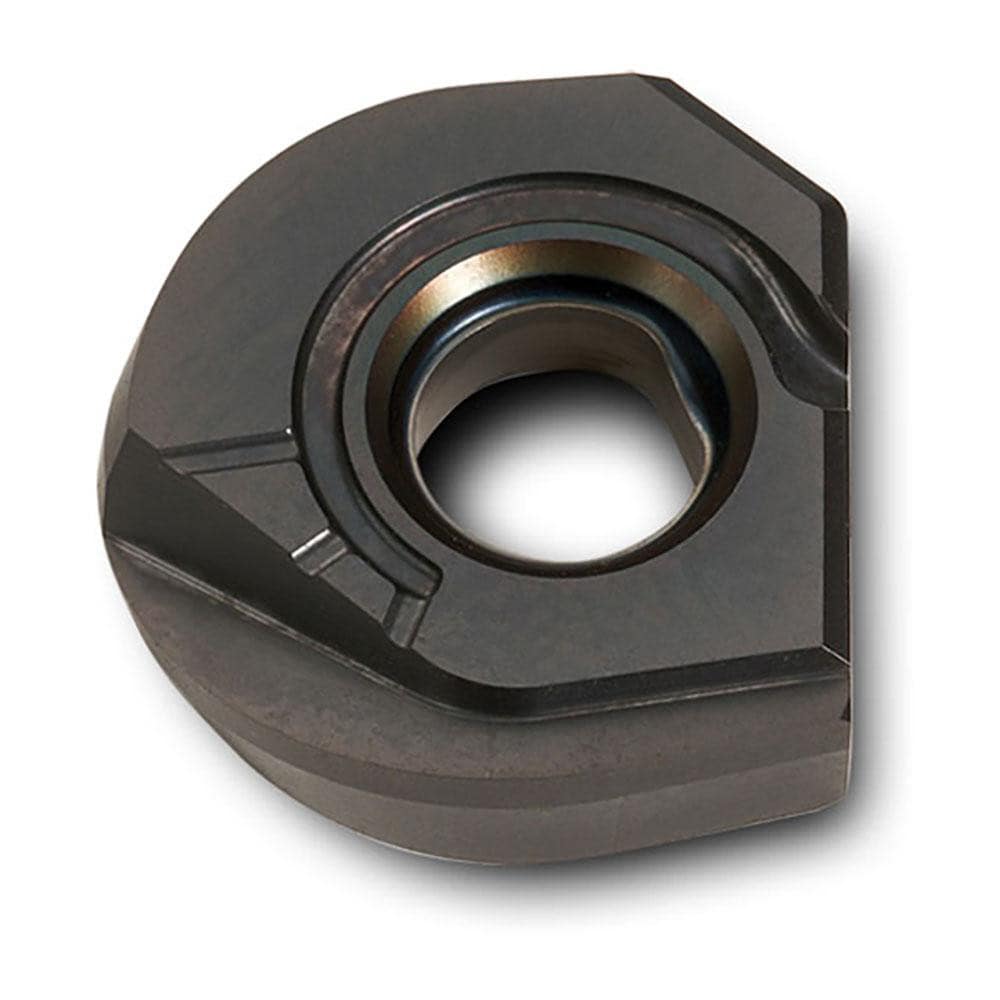

Milling Insert: NQHG150400RFM IN2005 IN2005, Solid Carbide
Item #: 40874943
Brand: Ingersoll Cutting Tools
Model #: 5813200
Product Specifications
| Insert Style | NQHG |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose |
| Manufacturer Grade | IN2005 |
| Corner Radius (Decimal Inch) | 0.3120 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1650 |
| Coating/Finish | TiAlN |
| Insert Size Code | 150400 |
| Material Grade | Micrograin |
| Width (Inch) | 5/8 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Series | NQHG |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | NQHG150400R-FM IN2005 |
| Iso Code | NQHG150400RFM IN2005 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 5813200 |
| Cutter Series Compatibility | 12A5; 12A9 |
| Chip Breaker | FM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Clamp |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.6160 |
