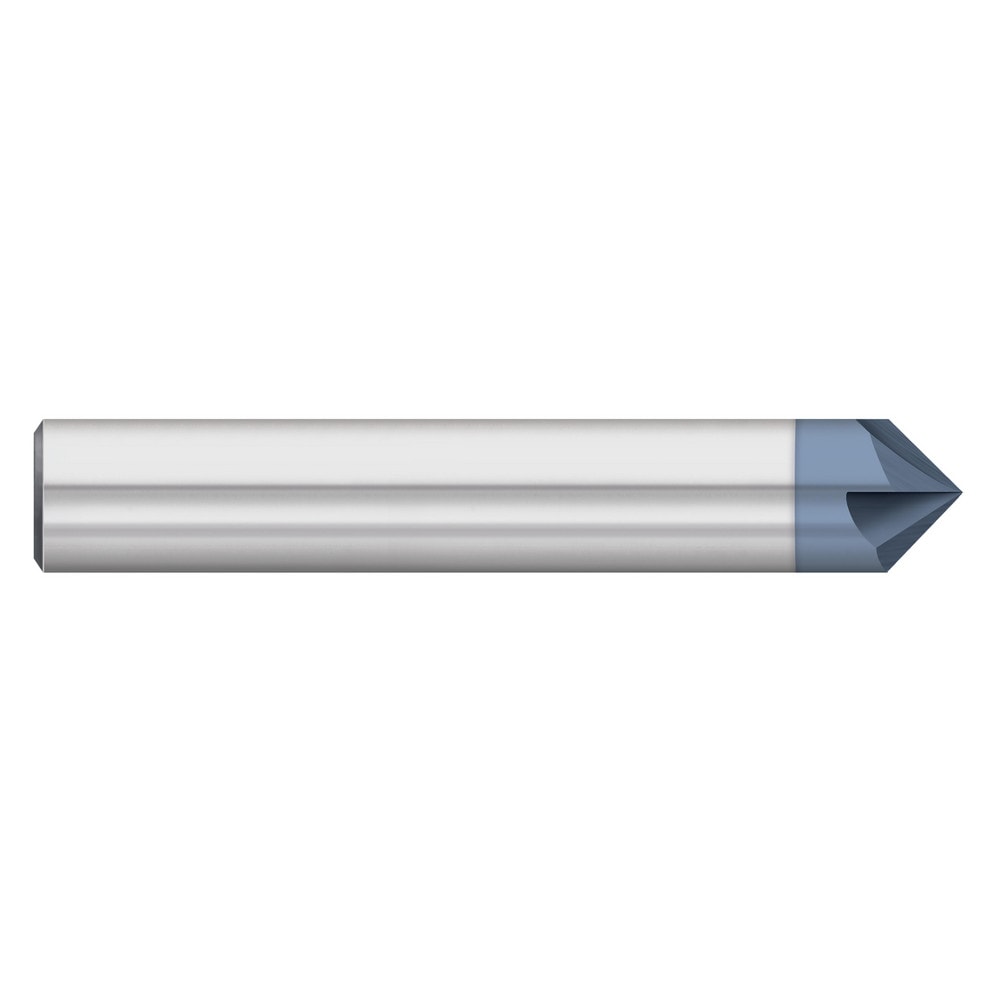

Chamfer Mill: 1/4" Dia, 1/4" Shank Dia, 30.00 deg, 4 Flute, Solid Carbide, Single End
Item #: 62566328
Brand: Titan USA
Model #: TC95436
Product Specifications
| Cutter Head Diameter (Fractional Inch) | 1/4 |
| Cutter Head Diameter (Decimal Inch) | 0.2500 |
| End Type | Single |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Number Of Flutes | 4 |
| Series | Chamfer Mills - 4 Flute - Pointed Tip |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2160 |
| Coating/Finish | AlTiN |
| Included Angle | 30.00 |
| UNSPSC Code | 23241600 |
| Cutter Head Diameter (Fractional Inch) | 1/4 |
| Cutter Head Diameter (Decimal Inch) | 0.2500 |
| End Type | Single |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Number Of Flutes | 4 |
| Series | Chamfer Mills - 4 Flute - Pointed Tip |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2160 |
| Coating/Finish | AlTiN |
| Included Angle | 30.00 |
| UNSPSC Code | 23241600 |
| MSC Part # | 62566328 |
| Mfr Part # | TC95436 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
