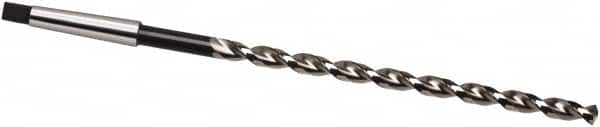

Taper Shank Drill Bit: 1.1811″ Dia, 3MT, 130 °, High Speed Steel Oxide Finish, 12.0079″ Flute Length, 18.1102″ OAL, Cone Relief Point, Parabolic Flute
Item #: 57733412
Brand: Guhring
Model #: 9005260300000
Product Specifications
| Drill Bit Size (mm) | 30.00 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 3MT |
| Overall Length (mm) | 460.00 |
| Coating/Finish | Oxide |
| Flute Type | Parabolic |
| Drill Point Angle | 130 |
| Coolant Through | No |
| Point Type | Cone Relief |
| Flute Length (mm) | 305.00 |
| Drill Bit Size (Decimal Inch) | 1.1811 |
| Flute Length (Decimal Inch) | 12.0079 |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 18.1102 |
| Series | 526 |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | h8 |
