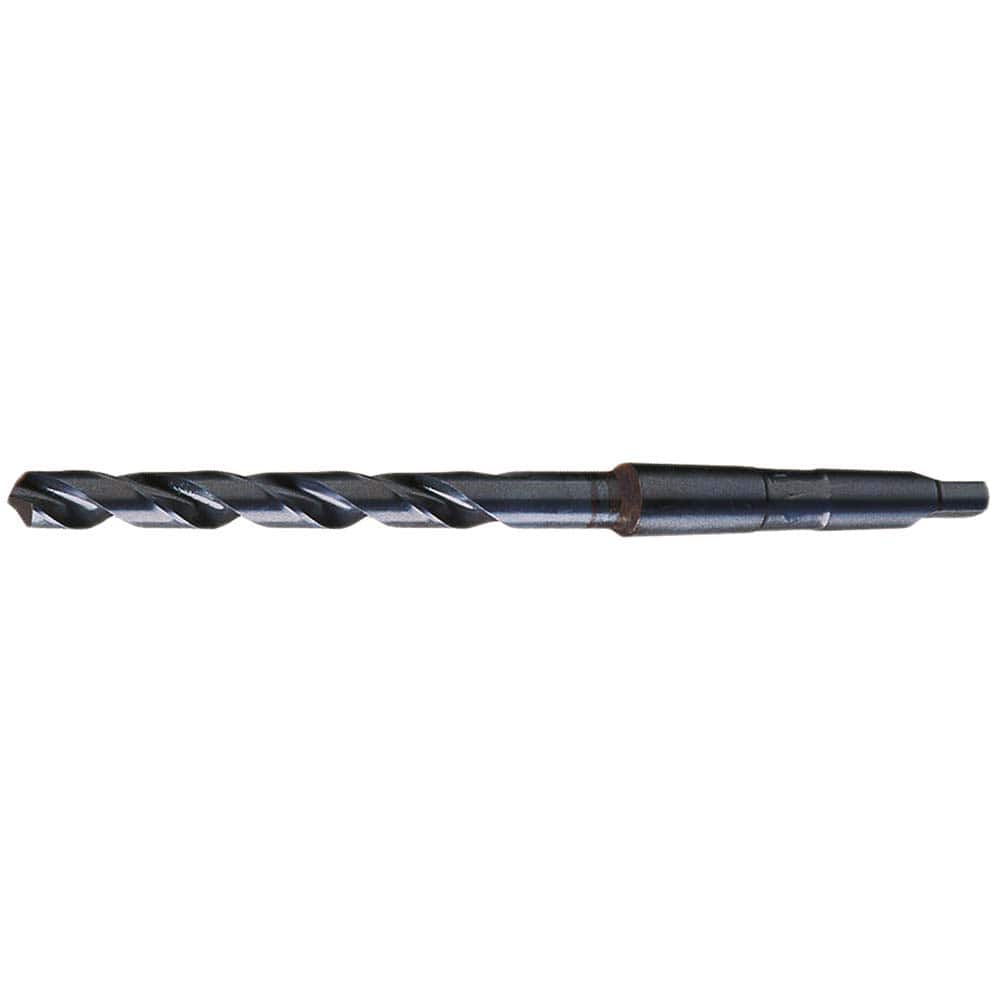

Taper Shank Drill Bit: 0.1563″ Dia, 1MT, 118 °, High Speed Steel Oxide Finish, 5.375″ OAL, Standard Point, Spiral Flute
Item #: 57646556
Brand: Cle-Line
Model #: C20051
Product Specifications
| Drill Bit Size (Inch) | 5/32 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 1MT |
| Overall Length (Inch) | 5-3/8 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Point Type | Standard |
| Flute Length (Inch) | 2-1/8 |
| Drill Bit Size (Decimal Inch) | 0.1563 |
| Flute Length (Decimal Inch) | 2.1250 |
| Tool Performance | General Purpose |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 5.3750 |
| Series | 1894 |
| Standards | ASME B94.11M |
| Web Thinning | Web-Thinned |
| Drill Length Type | Aircraft/Extension |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
