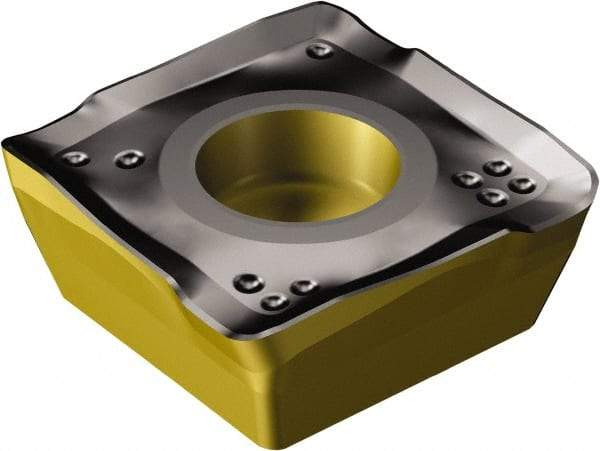

Sandvik Coromant - 490R1404 PH Grade 4330 Carbide Milling Insert - TiCN/Al2O3/TiN Coated, 3.9mm Thick, 13.8mm Inscribed Circle
Item #: 57330318
Brand: Sandvik Coromant
Model #: 7564356
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 490R |
| Insert Size | 1404 |
| Material | Carbide |
| Manufacturer's Grade | 4330 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 13.80 |
| Thickness (mm) | 3.90 |
| Corner Radius (mm) | 2.00 |
| Coating Process | CVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | PH |
