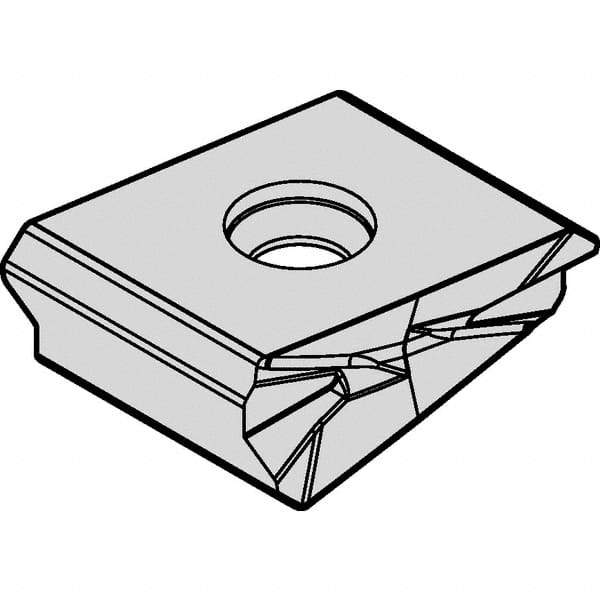

Kennametal - LNPU863 HD Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 0.3937" Thick, 1.2mm Corner Radius
Item #: 57203440
Brand: Kennametal
Model #: 4038005
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNPU |
| Insert Size | 863 |
| Material | Carbide |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Width (Decimal Inch) | 0.9850 |
| Length (Decimal Inch) | 1.1417 |
| Thickness (Decimal Inch) | 0.3937 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 7.00 |
| Hole Diameter (Decimal Inch) | 0.2756 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | HD |
| Cutting Edge Style | Honed T-Land |
| ISO Number | LNPU2410ANSRHD |
