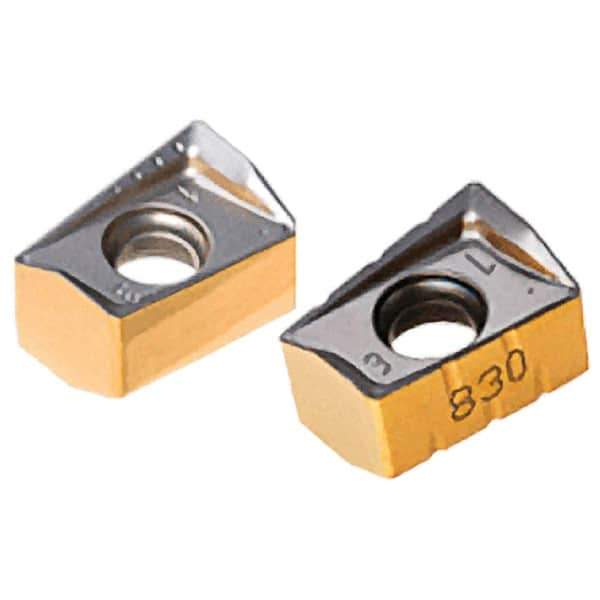

Iscar - H490 ANKX170624 TR Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.4134" Thick, 2.4mm Corner Radius
Item #: 57155251
Brand: Iscar
Model #: 5605872
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H490 ANKX |
| Insert Size | 170624 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.4331 |
| Length (Decimal Inch) | 0.6654 |
| Thickness (Decimal Inch) | 0.4134 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Corner Radius (mm) | 2.40 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | TR |
| ISO Number | H490 ANKX 170624PNTR |
