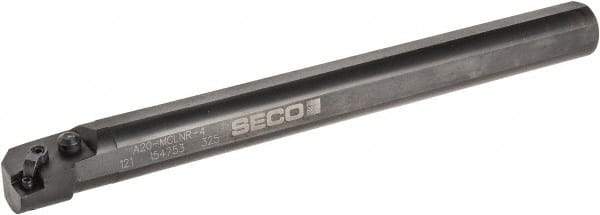

Seco - 1.53" Min Bore Diam, 14" OAL, 1-1/4" Shank Diam, MCLN Indexable Boring Bar - CNMG 432 Insert, Pin & Clamp Holding Method
Item #: 57135402
Brand: Seco
Model #: 41050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | MCLN |
| Minimum Bore Diameter (Decimal Inch) | 1.5300 |
| Hand of Holder | Right Hand |
| Overall Length (Inch) | 14 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | CNMG 432 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | -5 |
| Coolant Hole Diameter (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
