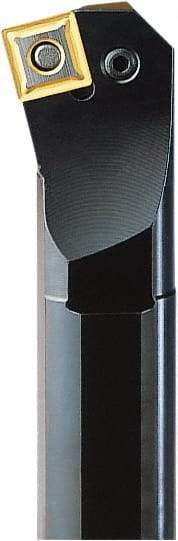

Seco - PSKNL, Left Hand Cut, 75° Lead Angle, 23mm Shank Height x 23mm Shank Width, Negative Rake Indexable Turning Toolholder - 300mm OAL, SNM..1204.. Insert Compatibility
Item #: 57007643
Brand: Seco
Model #: 00300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PSKNL |
| Rake | Negative |
| Rake Angle | -6 |
| Lead Angle | 75 |
| Shank Width (mm) | 23.00 |
| Shank Width (Decimal Inch) | 0.9055 |
| Shank Height (mm) | 23.00 |
| Shank Height (Decimal Inch) | 0.9055 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Compatibility | SNM..1204.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Head Length (mm) | 43.00 |
| Head Length (Decimal Inch) | 1.6929 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
