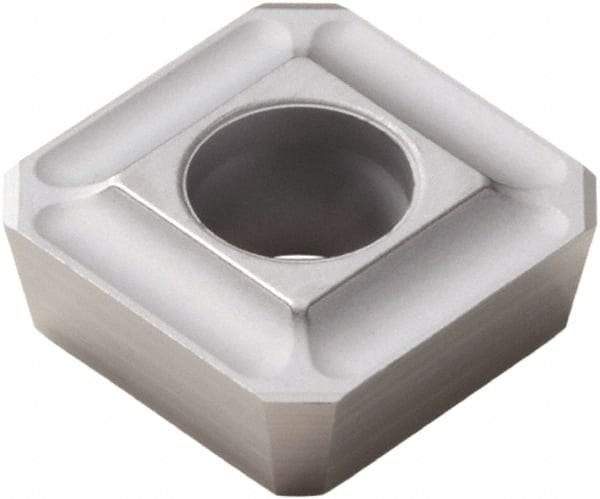

Seco - SPMX0602 75 Grade HX Carbide Milling Insert - Uncoated, 0.094" Thick, 1/4" Inscribed Circle
Item #: 57005449
Brand: Seco
Model #: 16854
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMX |
| Insert Size | 0602 |
| Material | Carbide |
| Material Grade | C2 |
| Manufacturer's Grade | HX |
| Coating | Uncoated |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Relief Angle | 11.000 |
| Rake Angle | 5 |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | 75 |
| ISO Number | SPMX 0602AP-75 |
