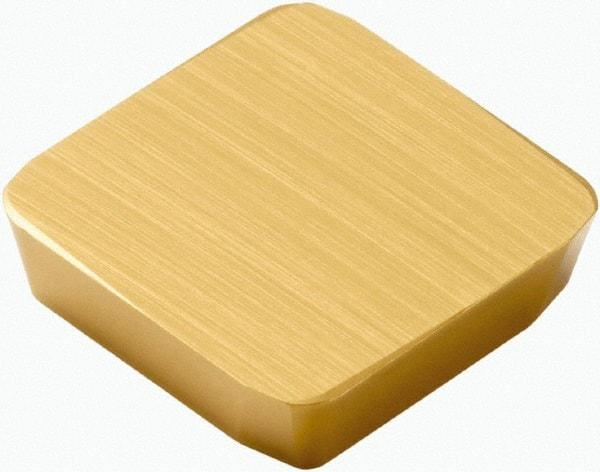

Seco - SPK42 MD14 Grade T25M Carbide Milling Insert - TiCN/TiC/TiCN/TiN Finish, 1/8" Thick, 1/2" Inscribed Circle
Item #: 57004244
Brand: Seco
Model #: 11894
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPK |
| Insert Size | 42 |
| Material | Carbide |
| Manufacturer's Grade | T25M |
| Coating | TiCN/TiC/TiCN/TiN |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 11.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | MD14 |
| Manufacturers Catalog Number | SPK 42EDTR-MD14 |
