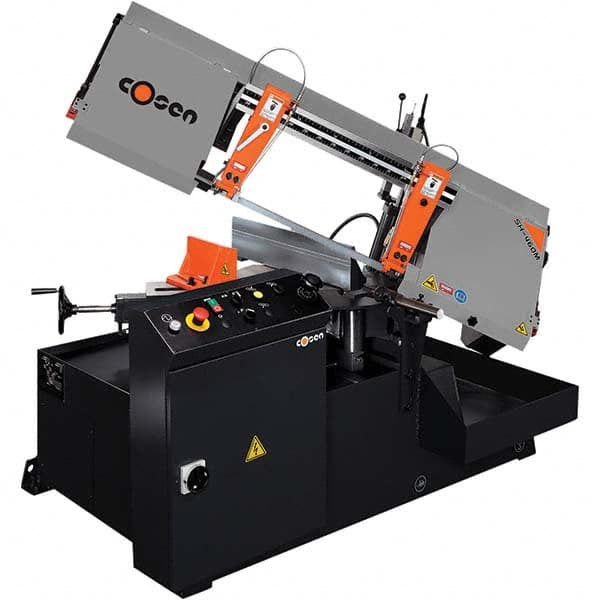

Cosen - Horizontal Bandsaws Machine Style: Semi-Automatic Drive Type: Step Pulley
Item #: 79832036
Brand: Cosen
Model #: SH-460M
Features and Benefits
Semi-automatic saws are similar to manual saws, but the saw head is programmed to automatically rise to the starting position after the cut is completed. The operator must then reposition the material to make another cut.
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Horizontal Bandsaws; Machine Style: Semi-Automatic ; Drive Type: Step Pulley ; Angle of Rotation: 90, 45, 60 ; Maximum Capacity (Rounds) (Inch): 10 ; Phase: 3 ; Voltage: 208/230/460
| Machine Style | Semi-Automatic |
| Drive Type | Step Pulley |
| Angle of Rotation | 90, 45, 60 |
| Maximum Capacity (Rounds) (Inch) | 10 |
| Phase | 3 |
| Voltage | 208/230/460 |
| Coolant System | Yes |
| Blade Width (Decimal Inch) | 1.0000 |
| Blade Length (Inch) | 138.0000 |
| Blade Length (Decimal Inch) | 138.0000 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Blade Guide Type | Carbide |
| Horsepower (HP) | 2.00 |
