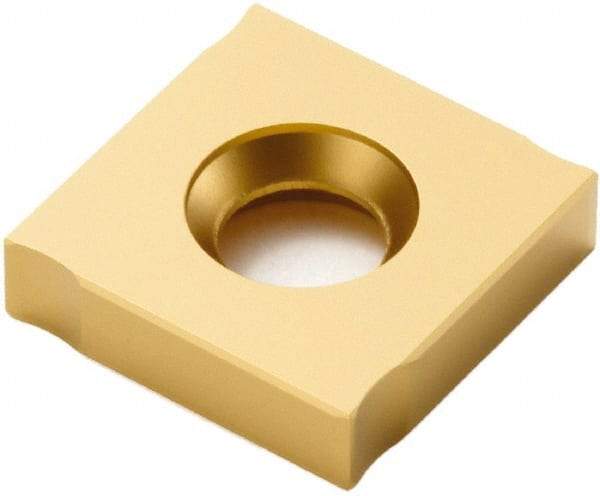

Seco - 335.191205 MD09 Grade T25M Carbide Milling Insert - TiCN/TiC/TiCN/TiN Finish, 0.213" Thick, 1/2" Inscribed Circle
Item #: 56968985
Brand: Seco
Model #: 16055
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 335.19 |
| Insert Size | 1205 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | T25M |
| Coating | TiCN/TiC/TiCN/TiN |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2130 |
| Rake Angle | 15 |
| Coating Process | CVD |
| Shape | Square |
| Chipbreaker | MD09 |
| Cutting Edge Style | T-Land |
| ISO Number | 335.19-1205T-MD09 |
